Home > Products > Wood Chipper > Wood Chipper

Wood Chipper

Model: YMPJ216; YMPJ218; YMPJ2113

Capacity: 3-5t/h; 6-10t/h; 15-25t/h

Power: 55kw; 110kw; 315kw

Final Chips: 3-5cm

More+

Inquire Now Download

What is Wood Chipper?

ROTEXMASTER has been manufacturing wood chipper machines for all kinds of application fields. Our drum wood chipper are known for their performance and quality, both nationally and worldwide. The wood chippers can chip wood logs, branches, timber, cross-cuts, slabs, furniture waste, bamboo, wood pallet into 3-5cm chips. The broad application ranges from sawmill disposal for the chipping of cross-cuts, slabs and chips to large chipping stations in wood-based material plants, power plant, paper plant– individually adapted to your application.

Wood Chipper

Technical Parameter

Model	Power(kw)	Capacity(t/h)	Feeding Hopper Size(mm)	Chips Size(mm)	Weight (t)
YMPJ216	55+3+4+1.5	3-5	545*230	30	4.5
YMPJ218	110+5.5+5.5+1.5	6-10	710*360	30	6
YMPJ2113	220/315+11+11+3	15-25	1100*530	30	17

Application

Drum wood chipper applies for various raw material, such as wood logs, branches, bamboo, timber, slab, various waste wood etc.

Wood Log

Branches

Waste Wood

Bamboo

Advantages

Wood Chipper Strong structure ensure wood chipper run steadily without ground foundation. and the blade material is H13, anti-wearing, prolonging service life, which can cut hard wood.

Wood Chipper Feed roller adopts 45# Mn steel, with strong abrasion and precise bite force, the strength and performance higher than welded parts.

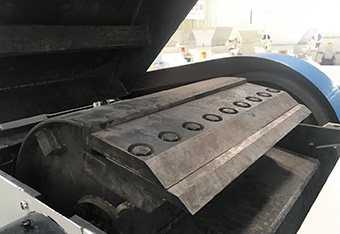

Wood Chipper The rotor of wood chipper machine is undergo dynamic balance testing, the error is controlled within 1g.

Wood Chipper Current detection system can prevented the main motor from being burnt out by overload, thus reducing the maintenance cost. The motor is frequency with thick copper coil, it won’t be burned due to instantaneous current when long wood log entering.

Wood Chipper Feeding chain conveyor of wood chipper machine can feed material evenly, so the material won’t be blocked.

Control System With remote device, to control feeding raw material forward and backward easily.

Global Wood Chips Market

Factors such as the use of renewable energy such as biomass due to the consumption of traditional energy are driving the wood chip market.

In addition, the demand of the pulp industry is increasing, in which wood chips are used as raw material for pulp production, which also expands the wood chips market.

Furthermore, wood chips have been used for power plants and heat generation.

When burning, wood chips will generate biochar, also named charcoal. It can be either used as charcoal or returned to the soil as fertilizer. This will drive the wood chips market.

What to look out for when buying a wood chipper?

Feeding Hopper Size

What is the diameter of your raw material? This point is very important. As each wood chipper has certain maximum size.

Capacity

Different models of wood chipper are with different capacity, please let us know your capacity requirement, we can help you choose suitable model.

Blade Quality

The blade quality determines service life. Choose the material with anti-wearing.

Engine

We have electric and diesel engine type. If you use your wod chipper in the factory, you can choose electric type. If you want to use the wood chipper outside or in the forestry, diesel engine wood chipper is suitable for you.

Maintaining the Wood Chipper

General maintenance for wood chippers includes:

• Greasing moving parts at regular intervals

• Replacing the blades as necessary

• Replacing the screen as necessary

Cases Around the Globe

Drum Wood Chipper in South Korea

Country: South Korea

Capacity: 15-25t/h

Raw Material: wood log, waste wood

Mobile Wood Chipper in Japan

Country: Japan

Capacity: 8-10t/h

Raw Material: wood log, waste wood

Wood Chipper in Russia

Country: Russia

Capacity: 8-10t/h

Raw Material: wood log, waste wood

Wood Chipper in Thailand

Country: Thailand

Capacity: 15-25t/h

Raw Material: wood log, waste wood

FAQ

Q: Are you manufacturer or trading company?

A: RotexMaster is leading pellet machinery manufacturer in China, also with marketing department and R&D center.
Q: I am newer to biomass industry, how to design suitable pellet plant?

A: Do not worry about that. We already helped many beginners. We can customize 1-30t/h project according to every customer’s needs. Also we can provide turnkey service.
Q: How to prepare for setting up a wood pellet production line?

A: Factory to set up pellet line, store raw material and pellets
Abundant raw material
Staff needed for operating the pellet line
Transformer to offer enough power for pellet line
Q: How can you guarantee the after-sales service?

A: RotexMaster has professional After-sales service system. Onsite installation, debugging, training, maintenance are available worldwide by 20 years experienced and skillful engineers. Also spare parts can be available timely due to oversea warehouses.
Q: Are there some machines in my area I can observe?

A: RotexMaster has exported to more than 89 countries and regions, if there are machines nearby you, we can contact the customer to arrange a visit for you.
Q: What type of raw materials can be pelletized by RotexMaster pellet machine?

A: Waste wood materials, forest waste, agricultural straw, rice husk, peanut shells, bamboo, sugarcane bagasse, alfalfa, grass, palm fiber, coffee husk, fertilizer etc.
Q: How to confirm the compression ratio of mould for my raw material?

A: Our experienced engineers are familiar with many regular raw material. If your raw material is special, do not worry, we can provide free raw material test. You just need to send your raw material to us, we will find the best way to make pellets with it.
Q: What is the main process for making biomass pellets?

A: Coarse Crushing Section(wood splitter, wood chipper)—Crushing Section—Drying Section—Pelletizing Section—Cooling Section—Packing Section—Controlling Section
Q: What is your work flow if we order Rotexmaster equipment?

A: Inquiry—Customize Plant & Quotation—Communication—Order Confirm & Payment Received—Production—Regular Production Tracing—Quality Inspection for Every Product—Book Vessel & Arrange Delivery—Documents Post/Telex Release—Customs Clearance—Arrange Delivery to Clients` Site—Discharge Goods—Arrange Installation & Commissioning & Training
