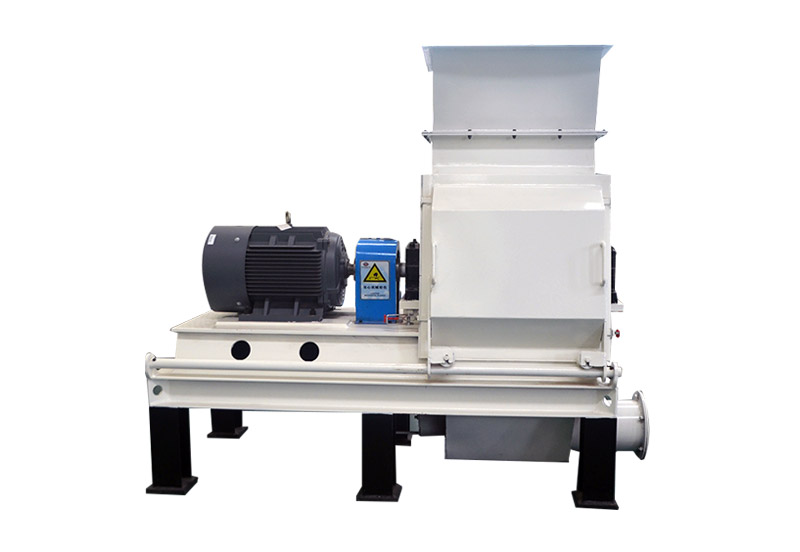

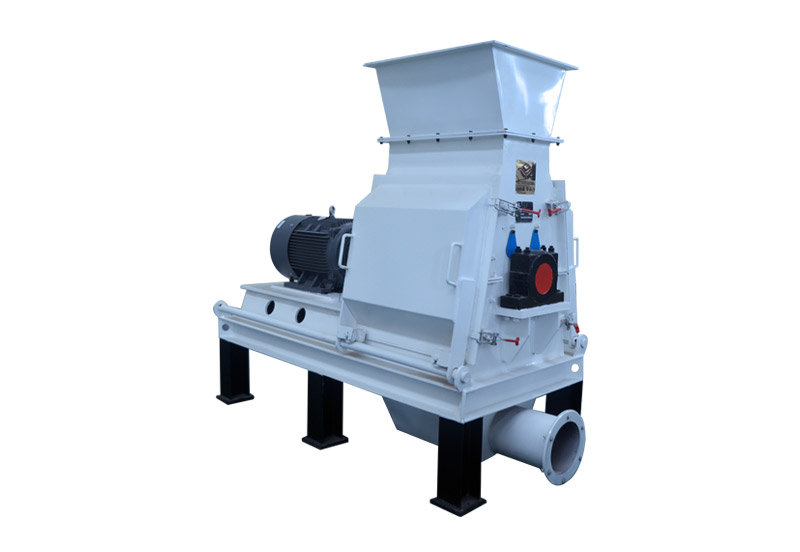

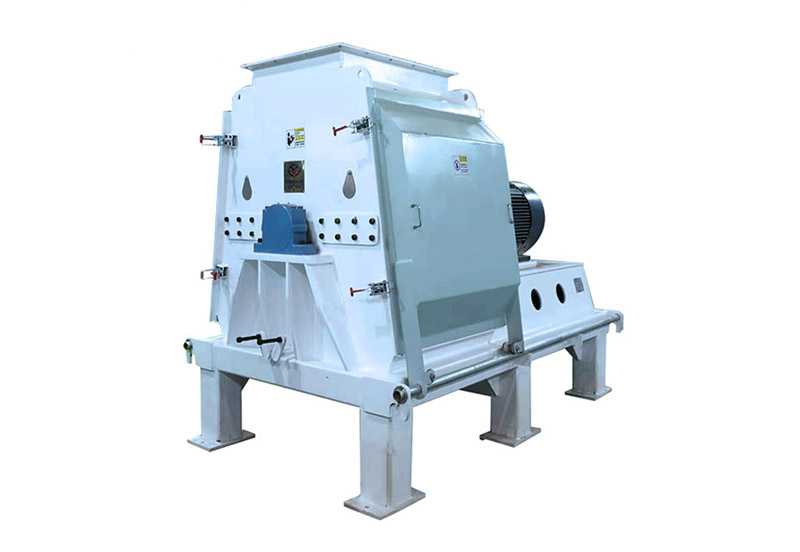

Wood Hammer Mill

Model: YGFS65*55/65*75/100; YGFS120*100; YSFS65*75/65*100

Capacity: 1-8t/h

Crushed Materials: 2-8mm

More+

Inquire Now

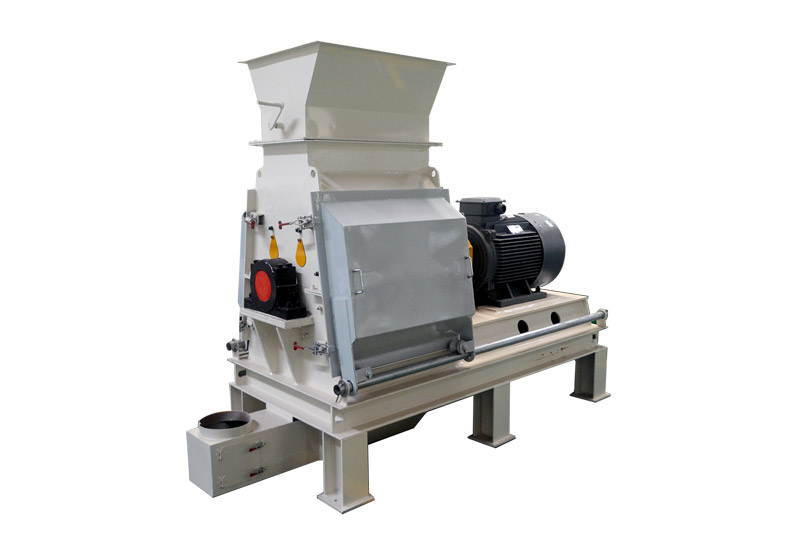

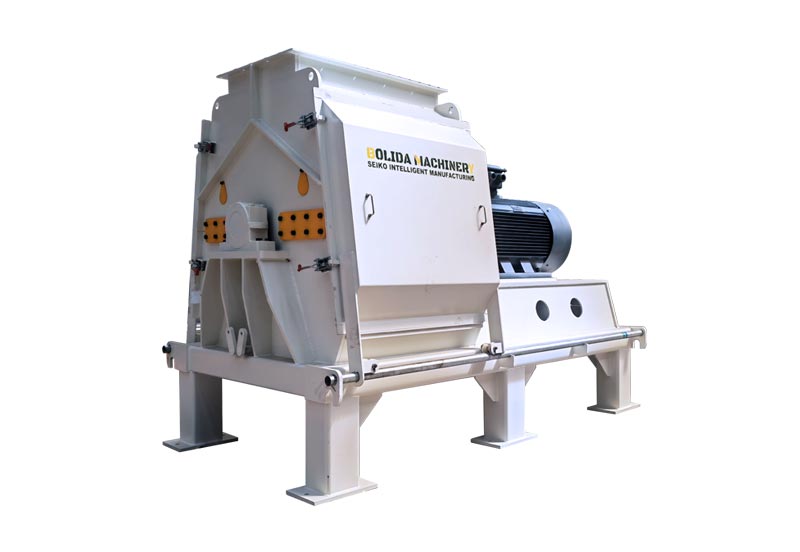

What is Wood Hammer Mill?

The high-efficiency wood hammer mill is widely used to crush various biomass wood chips and straw materials. The motor and the rotor are directly connected through a coupling, and the rotor can rotate in both positive and negative directions after the dynamic balance test. The raw material enters the crushing chamber and is crushed by the impact force generated by the high-speed rotating rotor. There is no dead angle in the crushing process. The granularity of crushed materials can be changed by changing screen plates with different apertures to obtain qualified crushed materials.

Technical Parameter

Model	Power(kw)	Capacity(t/h)	Hammer Qty(pcs)
YGFS65*55	37/45	1-2	72
YGFS65*75	55/75	2-3	108
YGFS65*100	90/110	3-4	144
YGFS120*75	132	4-6	108
YGFS120*100	160	5-8	216

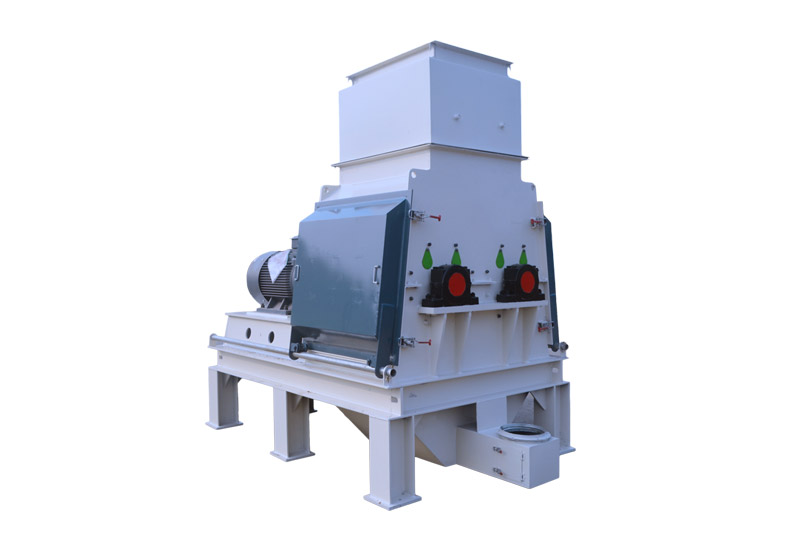

YSFS65*75	55/75x2	4-5	216
YSFS65*100	90/110x2	5-6	288

Application

Wood hammer mill can crush a wide range of raw materials, such as wood chips, wood shavings, straw, rice husk, grass, peanut shells, corn cob and other related materials.

Wood Chips

Peanut Shell

Agricultural Straw

Corn Cob

Advantages

The motor is directly connected to the rotor, the rotating speed is 2950-3000 rpm, the frequency of material beating is higher, and the efficiency is faster.

The rotor has passed the dynamic balance test, so that the vibration of the hammer mill is smaller and the noise is low.

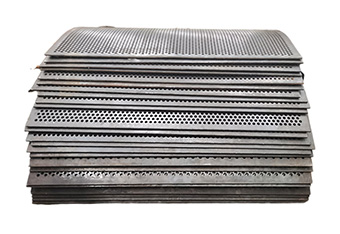

The screens are manufactured from high-quality carbon steel for long wear life; Large screen area, high output. The sieve plate can be changed with different holes.

Hammer Monitor the current, if current exceeding the set value, automatically stop feeding, so as to protect the main motor.

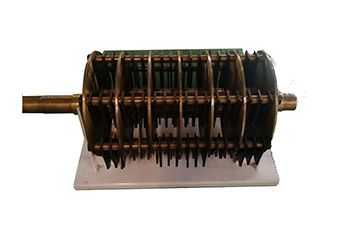

Rotor Real-time monitoring of bearing temperature, high temperature warning to prevent bearing damage.

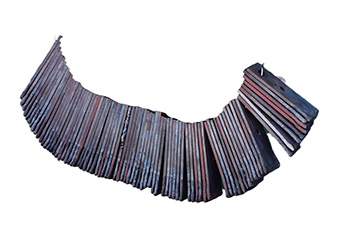

Screener The hammers are manufactured from high-strength carbon steel and finished with industry-leading hardfacing technology for optimized grinding, used positive and negative, extending serving life.

FAQ

Q: Are you manufacturer or trading company?

A: RotexMaster is leading pellet machinery manufacturer in China, also with marketing department and R&D center.
Q: I am newer to biomass industry, how to design suitable pellet plant?

A: Do not worry about that. We already helped many beginners. We can customize 1-30t/h project according to every customer’s needs. Also we can provide turnkey service.
Q: How to prepare for setting up a wood pellet production line?

A: Factory to set up pellet line, store raw material and pellets
Abundant raw material
Staff needed for operating the pellet line
Transformer to offer enough power for pellet line
Q: How can you guarantee the after-sales service?

A: RotexMaster has professional After-sales service system. Onsite installation, debugging, training, maintenance are available worldwide by 20 years experienced and skillful engineers. Also spare parts can be available timely due to oversea warehouses.
Q: Are there some machines in my area I can observe?

A: RotexMaster has exported to more than 89 countries and regions, if there are machines nearby you, we can contact the customer to arrange a visit for you.
Q: What type of raw materials can be pelletized by RotexMaster pellet machine?

A: Waste wood materials, forest waste, agricultural straw, rice husk, peanut shells, bamboo, sugarcane bagasse, alfalfa, grass, palm fiber, coffee husk, fertilizer etc.
Q: How to confirm the compression ratio of mould for my raw material?

A: Our experienced engineers are familiar with many regular raw material. If your raw material is special, do not worry, we can provide free raw material test. You just need to send your raw material to us, we will find the best way to make pellets with it.
Q: What is the main process for making biomass pellets?

A: Coarse Crushing Section(wood splitter, wood chipper)—Crushing Section—Drying Section—Pelletizing Section—Cooling Section—Packing Section—Controlling Section
Q: What is your work flow if we order Rotexmaster equipment?

A: Inquiry—Customize Plant & Quotation—Communication—Order Confirm & Payment Received—Production—Regular Production Tracing—Quality Inspection for Every Product—Book Vessel & Arrange Delivery—Documents Post/Telex Release—Customs Clearance—Arrange Delivery to Clients` Site—Discharge Goods—Arrange Installation & Commissioning & Training
